H-Energy is developing an eight million metric tonne per annum (Mtpa) liquefied natural gas (LNG) re-gasification project at Jaigarh Port in Ratnagiri District of Maharashtra, India.
The company entered a port service agreement and sub-concession agreement with JSW Jaigarh Port for installing an LNG regasification terminal at the port. JSW Jaigarh Port is currently operating the port under a concession agreement with the Government of Maharashtra. The JSW Jaigarh Port is a special purpose vehicle of JSW Infrastructure.
Recommended White Papers
Recommended Buyers Guides
The two-phase development includes a jetty-based floating storage and re-gasification unit (FSRU) with a capacity of three million to four million tonnes per annum (Mtpa) and an onshore LNG re-gasification terminal.

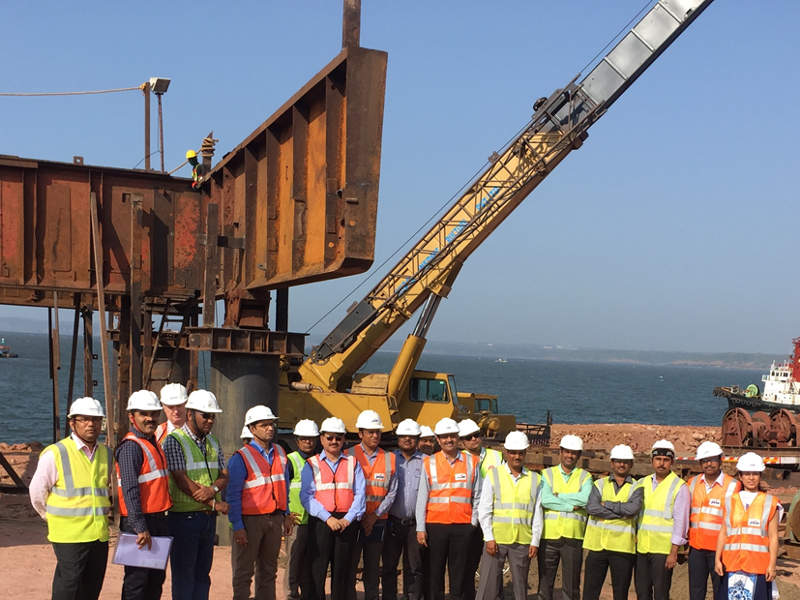

Construction work on the jetty started in January 2017 and is expected to be completed by the third quarter of 2017. Commercial operations of the terminal are expected to begin in the third quarter of 2018.
Details of the LNG re-gasification project
The jetty-based FSRU will have a storage capacity of 145,000m³ and a re-gasification capacity of 4Mtpa. It will also have the capability to reload LNG onto other LNG vessels. JSW Jaigarh Port is responsible for the construction of the jetty.
LNG required for the new FSRU at Jaigarh will be supplied by Engie under an FSRU agreement made in April 2017. Engie is an energy company based in France.

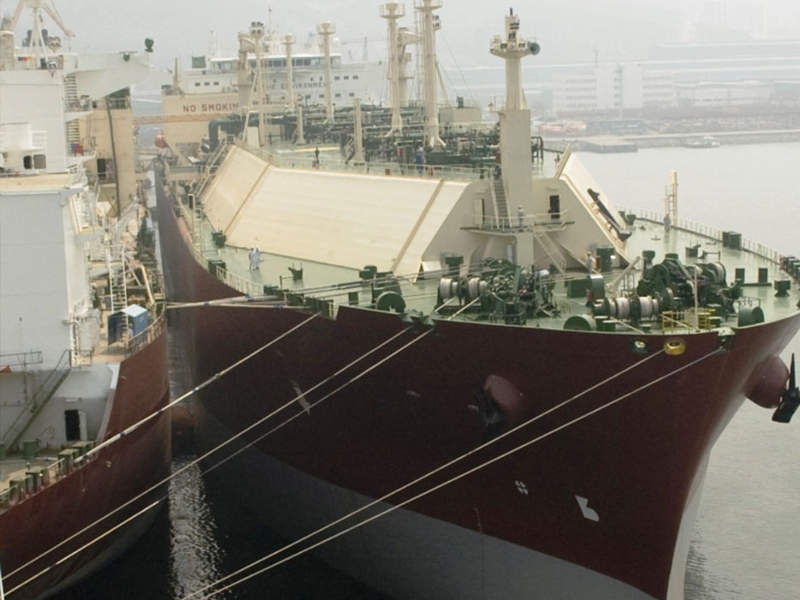

Engie will charter its GDF SUEZ Cape Ann FSRU at Jaigarh for a minimum period of five years, with an option to extend the charter party agreement.
Natural gas will be stored, pressurised, and re-gasified before transporting to Dabhol receiving facility for supply to consumers.
Details of the LNG re-gasification terminal
The LNG re-gasification (LNR) terminal will be located approximately 55km from Ratnagiri city. It will act as an onshore LNG storage and regasification facility and comply with the highest Indian and international engineering and safety standards.
The LNR terminal will include all the requisite LNG unloading facilities, pipelines to transfer LNG, two 190,000m³ capacity LNG storage tanks, and a heat exchange/vaporisation system.
The nominal gas sent out from the terminal will be up to 29 million standard cubic metres per day (Mscmpd), equivalent to 8Mtpa, with peak send out of gas reaching up to 36Mscmpd (10Mtpa).
The terminal operation is based on a tolling model that facilitates the third-party or the user to book regasification capacity in the LNG terminal while utilising the terminal facilities to unload the LNG procured from international markets.
Pipelines network of the West Coast project

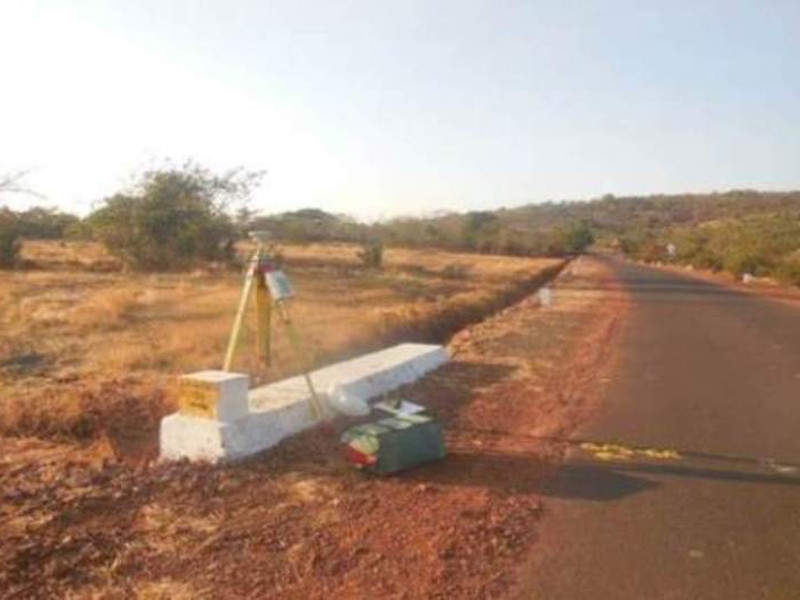

The Petroleum and Natural Gas Regulatory Board (PNGRB) authorised H-Energy Gateway to build and operate a 60km tie-in pipeline from Jaigarh port to Dabhol in May 2015.
The tie-in line will link the terminal to two natural gas pipeline networks on the western coast of India, namely Dahej-Uran-Dabhol-Panvel (DUDPL) and Dabhol-Bangalore (DBPL). The two pipeline networks are owned and operated by GAIL (India).
Agreements signed by H-Energy
H-Energy entered a memorandum of understanding (MoU) with Korea Gas Corporation, SK Shipping, Fairwood Peninsula Energy, and Korea Development Bank for developing FSRU and pipeline projects in India’s East and West coasts.
H-Energy is a part of Hiranandani Group.
Apart from investing equity, the entities will also participate in the project development by providing management services in the areas of project execution, operations and maintenance, and skill development.
Jaigarh Port details
The Jaigarh port has been operational since August 2009. It consists of two berths with a handling capacity of 15Mtpa.
The all-weather deep-water port offers ideal marine conditions for berthing LNG vessels up to Q-max size. The existing 700m-long breakwater ensures continuous berthing operations throughout the year, including night navigation facilities.
Contractors involved in the development
The engineering, procurement, construction, and maintenance contract for the 60km tie-in pipeline was awarded to Engineers India.
